2FA REST API

When to choose 2FA REST API

Choose 2FA REST API when your application needs to create one-time SMS challenges and validate user-entered codes without building token generation, delivery, and expiry handling yourself; choose the SMS APIs when you only need to send standard notifications.

Overview

This page describes the resources that make up the 2FA REST API v1, for developers who want to integrate Two Factor Authentication into their application.

The 2FA REST API provides access to resources (data entities) via URI paths. To use a REST API, your application will make an HTTP request and parse the response. The response format is JSON. Your method will be the standard HTTP method POST.

What the API can do

Create a 2FA challenge for a mobile handset
Send the challenge by SMS using a generated code
Customise the challenge message when it includes the %(code)s variable
Set an optional alphanumeric mask where supported
Adjust the validity window for a challenge code
Validate a user’s response against the original challenge

How it works

In practice, the API follows a simple workflow:

Authenticate with HTTP Basic Authentication.
Create a challenge with POST /challenges.
Send the returned challenge ID to your application session or verification flow.
Ask the user to enter the code they received.
Validate the code with POST /responses.

When to use 2FA REST API

Use 2FA REST API when you need a hosted SMS challenge-and-response flow for login verification, transaction approval, or other step-up authentication journeys.

For ordinary one-way SMS notifications, use REST v2 or another SMS API instead. For multi-channel fallback, review IM API.

Before you start

Before making your first request, confirm the following:

Your 2FA application has been provisioned.
You have the application username and password for HTTP Basic Authentication.
Mobile numbers are formatted in international format, for example +64211234567.
Any custom message content includes the %(code)s named variable.
Any requested mask is supported for the destination country and carrier.

Request Credentials

First successful request path

For most implementations, the fastest way to validate connectivity and configuration is:

Authenticate using your 2FA API username and password.
Submit a minimal POST /challenges request with a valid destination.
Store the returned challenge ID.
Submit a POST /responses request with that challenge ID and the code received by the handset.
Confirm the response status and handle failed or expired codes in your application.

Authentication

HTTP Basic Authentication is used for all requests. If you access the API without having the correct credentials OR permission to access the API, you will get a HTTP 401 response.

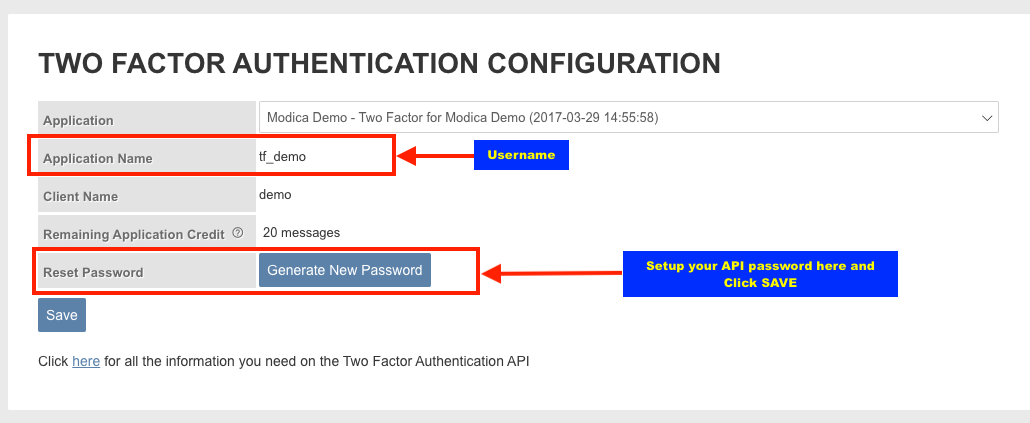

We will provide you with a username and password to use. Your application username is the same as your application name on this page. If you don’t have these details, please contact support@modicagroup.com.

Base URI

All API access is over HTTPS, and accessed from: https://api.modicagroup.com/rest/2fa

Versions

The REST API version is currently v1. A custom media type is used to let consumers choose the data format they wish to receive:

Accept: application/vnd.modica.2fa.v1+json

Creating a Challenge

To send a challenge to a mobile handset, submit a POST request:

POST /challenges

{
  "destination": str:mobile-number
}

Create Challenge Example

These examples create a 2FA challenge using the 2FA REST API.

curl -X POST "https://{apiDomainName}/rest/2fa/challenges" \
  -H "Accept: application/vnd.modica.2fa.v1+json" \
  -H "Content-Type: application/json" \
  -u "username:password" \
  -d '{"destination":"+64211234567"}'

const credentials = btoa("username:password");

const response = await fetch("https://{apiDomainName}/rest/2fa/challenges", {
  method: "POST",
  headers: {
    "Accept": "application/vnd.modica.2fa.v1+json",
    "Authorization": `Basic ${credentials}`,
    "Content-Type": "application/json"
  },
  body: JSON.stringify({
    destination: "+64211234567"
  })
});

const challenge = await response.json();

import requests

response = requests.post(
    "https://{apiDomainName}/rest/2fa/challenges",
    auth=("username", "password"),
    headers={
        "Accept": "application/vnd.modica.2fa.v1+json",
        "Content-Type": "application/json",
    },
    json={
        "destination": "+64211234567",
    },
)

challenge = response.json()

<?php
$payload = json_encode([
    "destination" => "+64211234567"
]);

$ch = curl_init("https://{apiDomainName}/rest/2fa/challenges");
curl_setopt($ch, CURLOPT_USERPWD, "username:password");
curl_setopt($ch, CURLOPT_HTTPHEADER, [
    "Accept: application/vnd.modica.2fa.v1+json",
    "Content-Type: application/json"
]);
curl_setopt($ch, CURLOPT_POST, true);
curl_setopt($ch, CURLOPT_POSTFIELDS, $payload);
curl_setopt($ch, CURLOPT_RETURNTRANSFER, true);

$response = curl_exec($ch);
curl_close($ch);
?>

require "json"
require "net/http"
require "uri"

uri = URI("https://{apiDomainName}/rest/2fa/challenges")
request = Net::HTTP::Post.new(uri)
request.basic_auth("username", "password")
request["Accept"] = "application/vnd.modica.2fa.v1+json"
request["Content-Type"] = "application/json"
request.body = {
  destination: "+64211234567"
}.to_json

response = Net::HTTP.start(uri.hostname, uri.port, use_ssl: true) do |http|
  http.request(request)
end

import java.net.URI;
import java.net.http.HttpClient;
import java.net.http.HttpRequest;
import java.net.http.HttpResponse;
import java.nio.charset.StandardCharsets;
import java.util.Base64;

String token = Base64.getEncoder()
    .encodeToString("username:password".getBytes(StandardCharsets.UTF_8));

String payload = """
{
  "destination": "+64211234567"
}
""";

HttpRequest request = HttpRequest.newBuilder()
    .uri(URI.create("https://{apiDomainName}/rest/2fa/challenges"))
    .header("Accept", "application/vnd.modica.2fa.v1+json")
    .header("Authorization", "Basic " + token)
    .header("Content-Type", "application/json")
    .POST(HttpRequest.BodyPublishers.ofString(payload))
    .build();

HttpResponse<String> response = HttpClient.newHttpClient()
    .send(request, HttpResponse.BodyHandlers.ofString());

using System.Net.Http.Headers;
using System.Text;

using var client = new HttpClient();
var token = Convert.ToBase64String(Encoding.UTF8.GetBytes("username:password"));

var request = new HttpRequestMessage(
    HttpMethod.Post,
    "https://{apiDomainName}/rest/2fa/challenges");
request.Headers.Accept.ParseAdd("application/vnd.modica.2fa.v1+json");
request.Headers.Authorization = new AuthenticationHeaderValue("Basic", token);
request.Content = new StringContent(
    """{"destination":"+64211234567"}""",
    Encoding.UTF8,
    "application/json");

var response = await client.SendAsync(request);
var responseBody = await response.Content.ReadAsStringAsync();

infoMobile number format must be international format e.g. +64211234567

To add a personalised message simply add the optional ‘content’ attribute:

{
  "content": "Your 2FA code is: %(code)s"
}

infoIf content is set you must include the %(code)s named variable otherwise an HTTP 400 is returned

To mask the source to a custom string, add the optional ‘mask’ attribute:

{
  "mask": "ModGrpExmpl"
}

infoMasking is not available for all countries and mobile carriers

infoThe maximum mask length is 11 characters. Masks exceeding this length will be rejected by mobile carriers

To modify the validity time for the 2FA code, add the optional ’expiresIn’ attribute:

{
	"expiresIn": "600"
}

infoIf “expiresIn” attribute is supplied, the 2fa code expiry time will be modified. The “expiresIn” is the number of seconds a code will remain active and valid. If the supplied “expiresIn” is shorter than 30 seconds or longer than 3600 seconds (1 hour) the challenge request will receive a 400 response.

infoIf not set, the default “expiresIn” value for a challenge code is 300 seconds (5 minutes).

On success:

HTTP/1.1 201 Created
X-Modica-Request-Id: uuid:request-id

{
  "created": str:timestamp,
  "expires": str:timestamp,
  "id": uuid:challenge-id
}

infoTimestamps are in UTC standard

infoCodes will expire 5 minutes after a challenge is created

On validation error:

HTTP/1.1 400 Bad Request
X-Modica-Request-Id: uuid:request-id

{
  "error": str:error-code
}

Challenge Response

To validate a response to a challenge submit a POST request:

POST /responses

{
  "challenge_id": uuid:challenge-id,
  "code": str:challenge-code
}

Validate Challenge Response Example

These examples validate a user’s response to a 2FA challenge.

curl -X POST "https://{apiDomainName}/rest/2fa/responses" \
  -H "Accept: application/vnd.modica.2fa.v1+json" \
  -H "Content-Type: application/json" \
  -u "username:password" \
  -d '{"challenge_id":"uuid:challenge-id","code":"str:challenge-code"}'

const credentials = btoa("username:password");

const response = await fetch("https://{apiDomainName}/rest/2fa/responses", {
  method: "POST",
  headers: {
    "Accept": "application/vnd.modica.2fa.v1+json",
    "Authorization": `Basic ${credentials}`,
    "Content-Type": "application/json"
  },
  body: JSON.stringify({
    challenge_id: "uuid:challenge-id",
    code: "str:challenge-code"
  })
});

const validation = await response.json();

import requests

response = requests.post(
    "https://{apiDomainName}/rest/2fa/responses",
    auth=("username", "password"),
    headers={
        "Accept": "application/vnd.modica.2fa.v1+json",
        "Content-Type": "application/json",
    },
    json={
        "challenge_id": "uuid:challenge-id",
        "code": "str:challenge-code",
    },
)

validation = response.json()

<?php
$payload = json_encode([
    "challenge_id" => "uuid:challenge-id",
    "code" => "str:challenge-code"
]);

$ch = curl_init("https://{apiDomainName}/rest/2fa/responses");
curl_setopt($ch, CURLOPT_USERPWD, "username:password");
curl_setopt($ch, CURLOPT_HTTPHEADER, [
    "Accept: application/vnd.modica.2fa.v1+json",
    "Content-Type: application/json"
]);
curl_setopt($ch, CURLOPT_POST, true);
curl_setopt($ch, CURLOPT_POSTFIELDS, $payload);
curl_setopt($ch, CURLOPT_RETURNTRANSFER, true);

$response = curl_exec($ch);
curl_close($ch);
?>

require "json"
require "net/http"
require "uri"

uri = URI("https://{apiDomainName}/rest/2fa/responses")
request = Net::HTTP::Post.new(uri)
request.basic_auth("username", "password")
request["Accept"] = "application/vnd.modica.2fa.v1+json"
request["Content-Type"] = "application/json"
request.body = {
  challenge_id: "uuid:challenge-id",
  code: "str:challenge-code"
}.to_json

response = Net::HTTP.start(uri.hostname, uri.port, use_ssl: true) do |http|
  http.request(request)
end

import java.net.URI;
import java.net.http.HttpClient;
import java.net.http.HttpRequest;
import java.net.http.HttpResponse;
import java.nio.charset.StandardCharsets;
import java.util.Base64;

String token = Base64.getEncoder()
    .encodeToString("username:password".getBytes(StandardCharsets.UTF_8));

String payload = """
{
  "challenge_id": "uuid:challenge-id",
  "code": "str:challenge-code"
}
""";

HttpRequest request = HttpRequest.newBuilder()
    .uri(URI.create("https://{apiDomainName}/rest/2fa/responses"))
    .header("Accept", "application/vnd.modica.2fa.v1+json")
    .header("Authorization", "Basic " + token)
    .header("Content-Type", "application/json")
    .POST(HttpRequest.BodyPublishers.ofString(payload))
    .build();

HttpResponse<String> response = HttpClient.newHttpClient()
    .send(request, HttpResponse.BodyHandlers.ofString());

using System.Net.Http.Headers;
using System.Text;

using var client = new HttpClient();
var token = Convert.ToBase64String(Encoding.UTF8.GetBytes("username:password"));

var request = new HttpRequestMessage(
    HttpMethod.Post,
    "https://{apiDomainName}/rest/2fa/responses");
request.Headers.Accept.ParseAdd("application/vnd.modica.2fa.v1+json");
request.Headers.Authorization = new AuthenticationHeaderValue("Basic", token);
request.Content = new StringContent(
    """{"challenge_id":"uuid:challenge-id","code":"str:challenge-code"}""",
    Encoding.UTF8,
    "application/json");

var response = await client.SendAsync(request);
var responseBody = await response.Content.ReadAsStringAsync();

On success:

HTTP/1.1 201 Created
X-Modica-Request-Id: uuid:request-id

{
  "status": str:status-code
}

On validation error:

HTTP/1.1 400 Bad Request
X-Modica-Request-Id: uuid:request-id

{
  "error": str:error-code
}

Help

Having trouble integrating with any of our services? Contact support@modicagroup.com and we’ll help you sort it out.
